SUB50A-700 series model
SUB50A-700 series model is an air-cooled Electro-Optically Q-switched DPSS 1064 nm laser delivering up to 50 mJ energy and 700 ps pulse duration at 20 Hz repetition rate. Laser design is based on short laser cavity direct pumping MO and power amplifiers with the VCSEL pump technology.

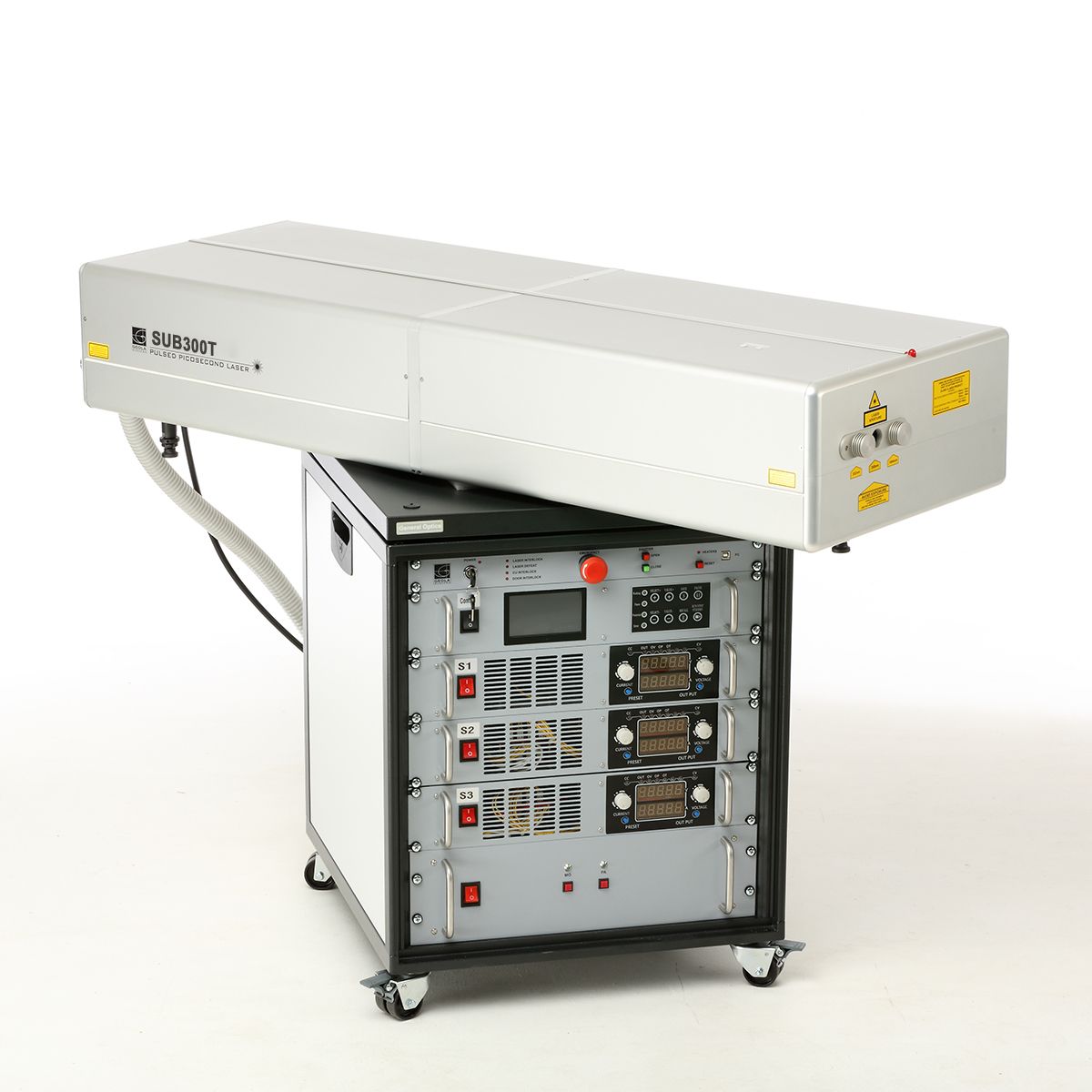

SUB300T series model
SUB300T series model is a water-cooled Electro-Optically Q-switched DPSS laser, which have electronically tunable pulse duration ranging 350…2000 ps. Laser delivers up to 300 mJ energy at 1064nm wavelengths at 50 Hz repetition rate. Laser design comprising short cavity MO-PA in conjunction with power amplifiers based on long lasting VCSEL pump technology.
SUB21, SUB31 and SUB51 series models
SUB21, SUB31 and SUB51 series models are passively Q-switched sub-nanosecond DPSS lasers deliver high peak powers at 100 Hz repetition rate. Short laser cavity with the fiber pumped technology is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance.
SUB-S series model
SUB-S series model (SBS-pulse compressed) is a family of compact DPSS or/and flash lamp pumped Nd:YAG or Nd:YLF lasers producing emissions in the sub-nanosecond regime (0.5…0.1ns). Lasers are based on temporal pulse compression by backward stimulated Brillouin scattering (SBS).
