Description
The SUB50A-700 series model is an air-cooled Electro-Optically Q-switched DPSS 1064 nm laser delivering up to 50 mJ energy and 700 ps pulse duration at 20 Hz repetition rate. Laser design is based on short laser cavity direct pumping MO and power amplifiers with the VCSEL pump technology. The know-how on thermo-stabilized structure fixed MO and AMPL elements gives extremely stable output parameters performance. Small laser form-factor and unique ≤200 ps optical jitter is welcome point for integration into OEM. Due to relatively high pulse energy, good M2 ≤ 1.3 parameter and short sub-ns pulse duration, laser delivers up to 71 MW peak power. An optional conversion module to green (532 nm) and ultraviolet (355 nm, 266 nm) is available.
Typical Laser Specifications*)
| Model | SUB50A-700 |
|---|---|
| Wavelength 1) | 1064 nm |
| Pulse energy | up to 50 mJ |
| Typical pulse duration 2) | ~ 700 ps |
| Pulse to pulse energy stability 3) | < 1 % RMS |
| Power drift 4) | ± 3.0 % |
| Pulse repetition rate 5) | 20 Hz |
| Beam profile | Near Gaussian |
| M2 | ≤ 1.3 |
| Beam divergence 6) | < 1 mrad |
| Polarization | Linear, vertical |
| Spectral linewidth | SLM |
| Beam pointing stability 7) | ≤ 100 μrad |
| Typical beam diameter 8) | ~ 5 mm |
| Optical jitter 9) | ≤ 200 ps RMS |
| Dimensions (preliminary) | |
| Laser head (W × L × H) | 167 × 478 × 232 mm |
| Controller unit (W × L × H) | 470 × 445 × 165 mm |
| Beam height | 133 mm |
| Operating requirements | |
| Cooling requirements | Air cooled |
| Ambient temperature | 15 – 25 °C |
| Relative humidity (non-condensing) | 10 – 80 % |
| Mains voltage 10) | 230 VAC, single phase, 50-60 Hz |
| Power consumption | < 450 W |
*) Typical specifications are illustrative; they are indications of typical performance and will vary with each unit we manufacture. Due to continuous improvements all specifications are subject to change. Unless stated otherwise all specifications are measured at 1064nm.
1) Other wavelengths may be also available on request
2) FWHM level at 1064 nm. Other pulse duration is available by request. Please inquire for detailed specifications.
3) Averaged from 60 seconds time interval.
4) Over 5-hour period after max 5 minutes of warm-up when ambient temperature variation is less than ±2°C.
5) Factory-set pulse repetition rate is fixed at max repetition rate.
6) Full angle measured at the 1/e2 level.
7) RMS value measured from 60 seconds time interval.
8) Beam diameter is measured at 20 cm distance from laser output at the 1/e2 level.
9) In respect to external Q-switch triggering rising edge pulse.
10) Laser can be powered from appropriate different mains on request. Inquire for details.
Application
- LIBS (Light Induced Breakdown Spectroscopy)
- Mass Spectroscopy (Time of flight mass spectrometry)
- LIF (Light Induced Fluorescence)
- LIDAR (Light Detection and Ranging)
- Material processing
- Remote Sensing
Dimensions SUB50A-700

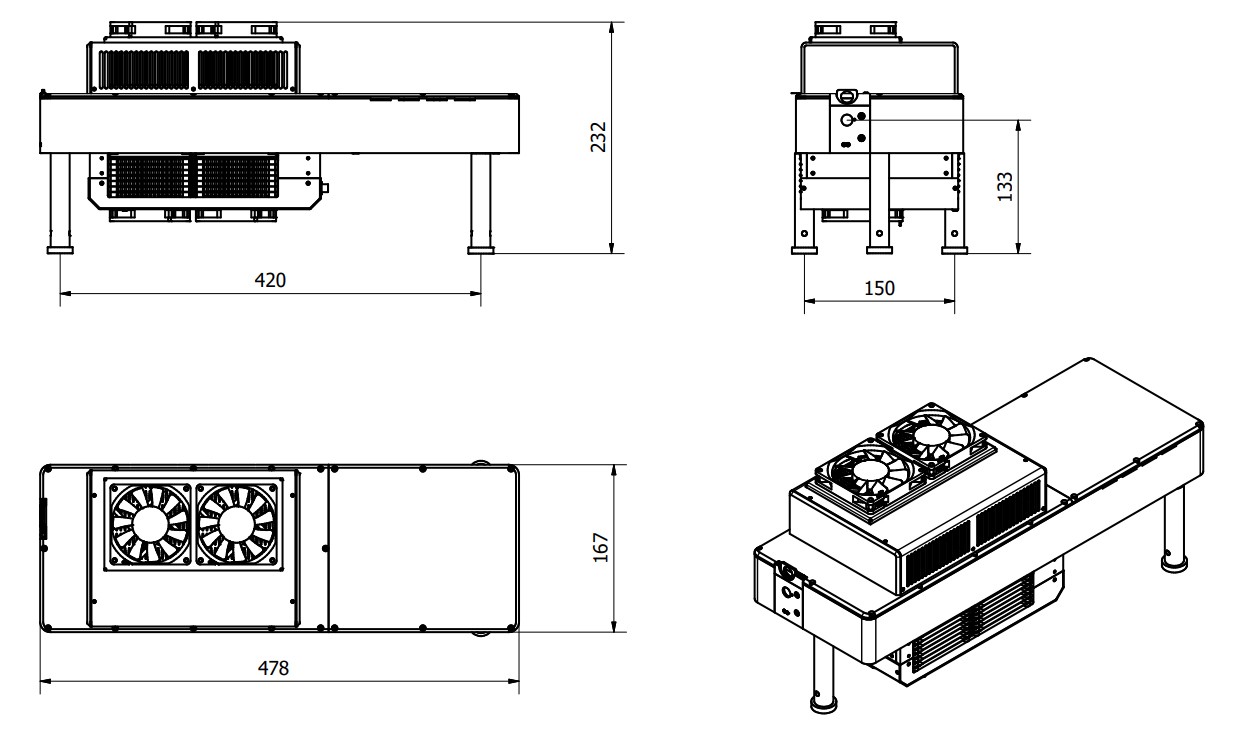

Laser head

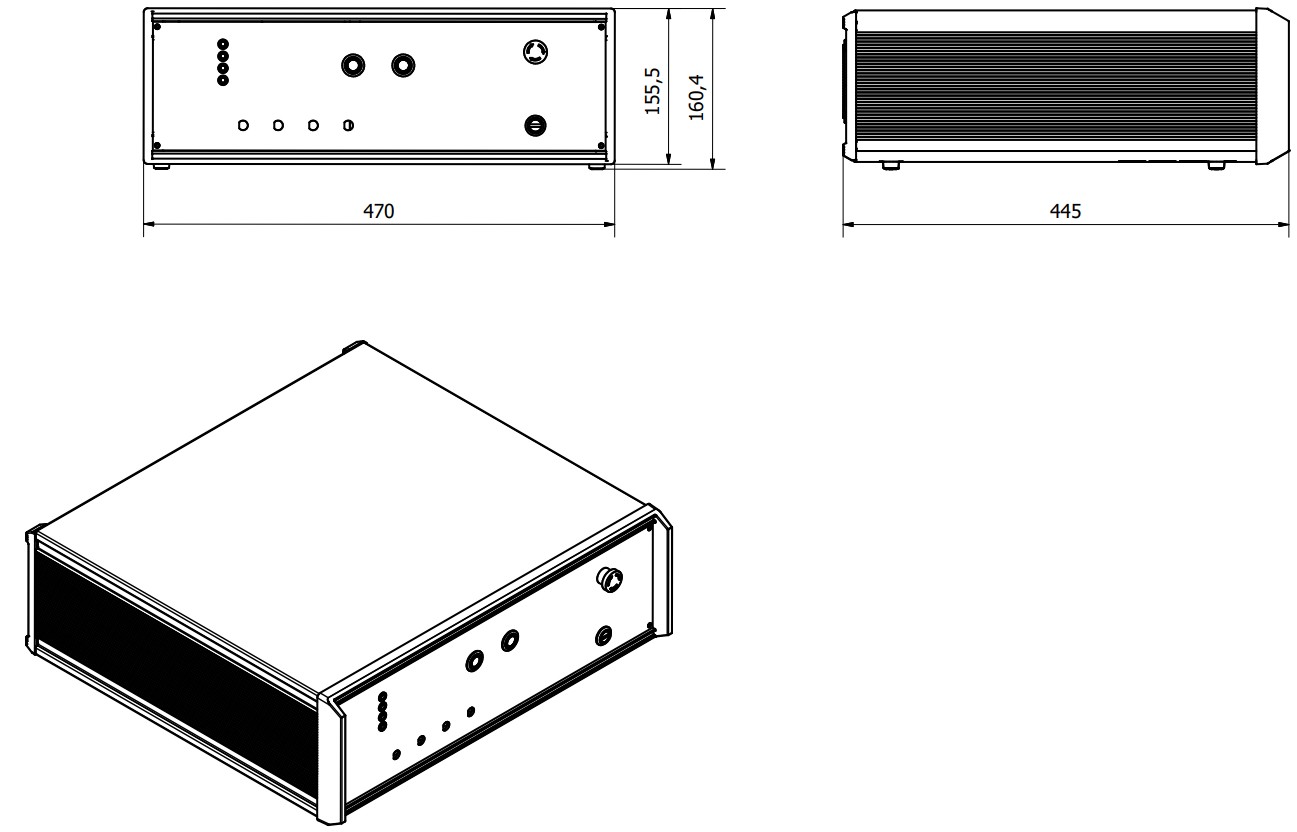

Laser controller

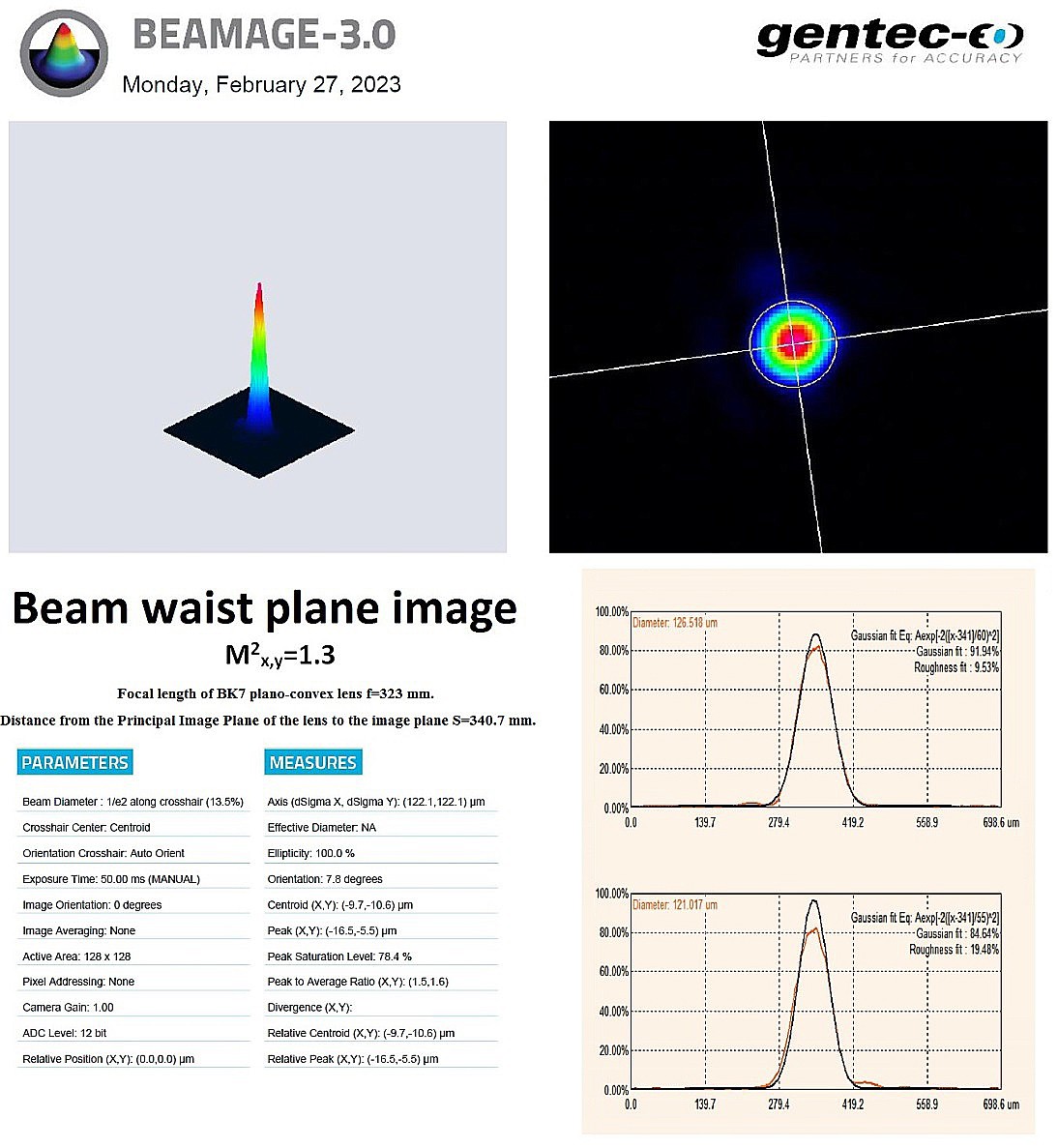

Laser Beam Profile at beam waist plane
