Description

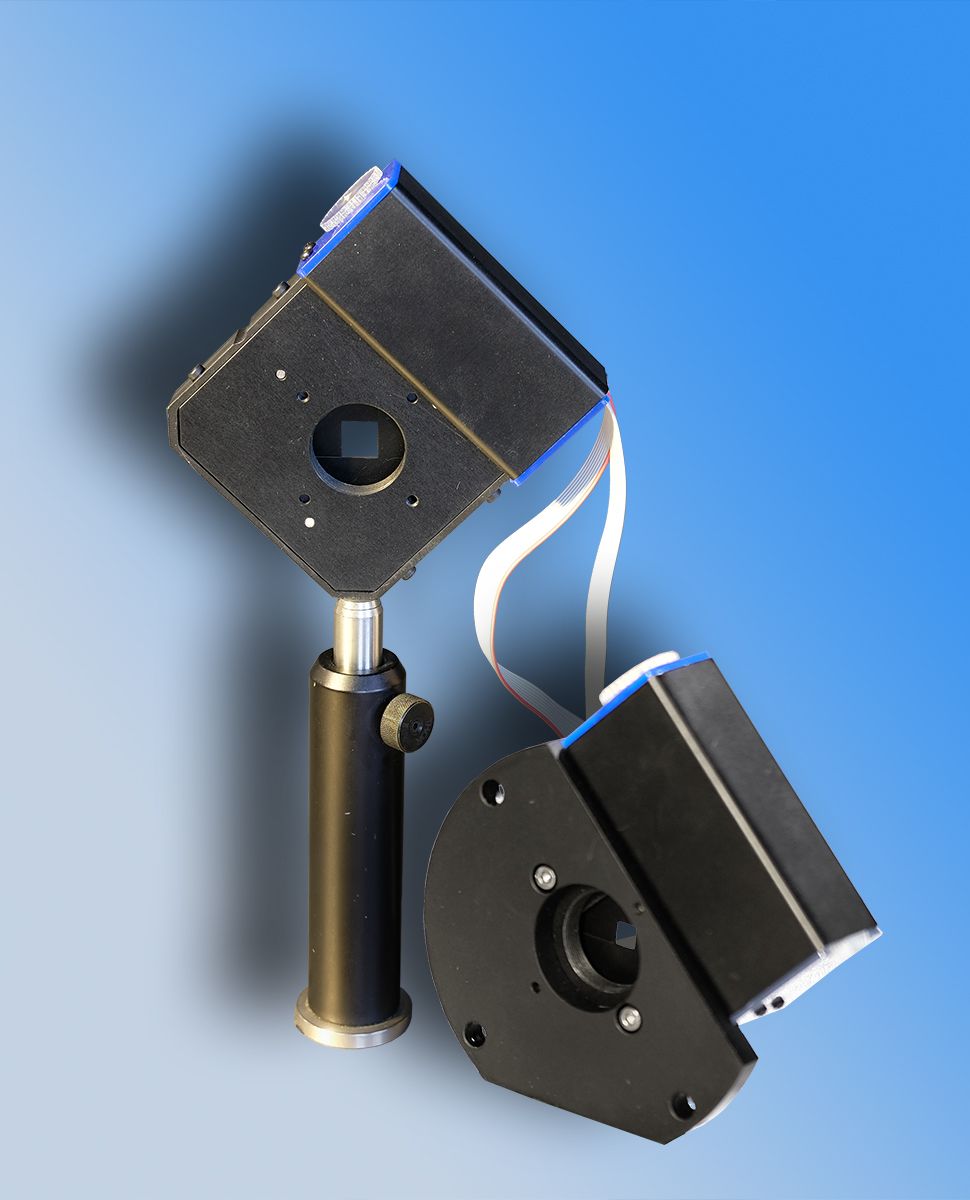

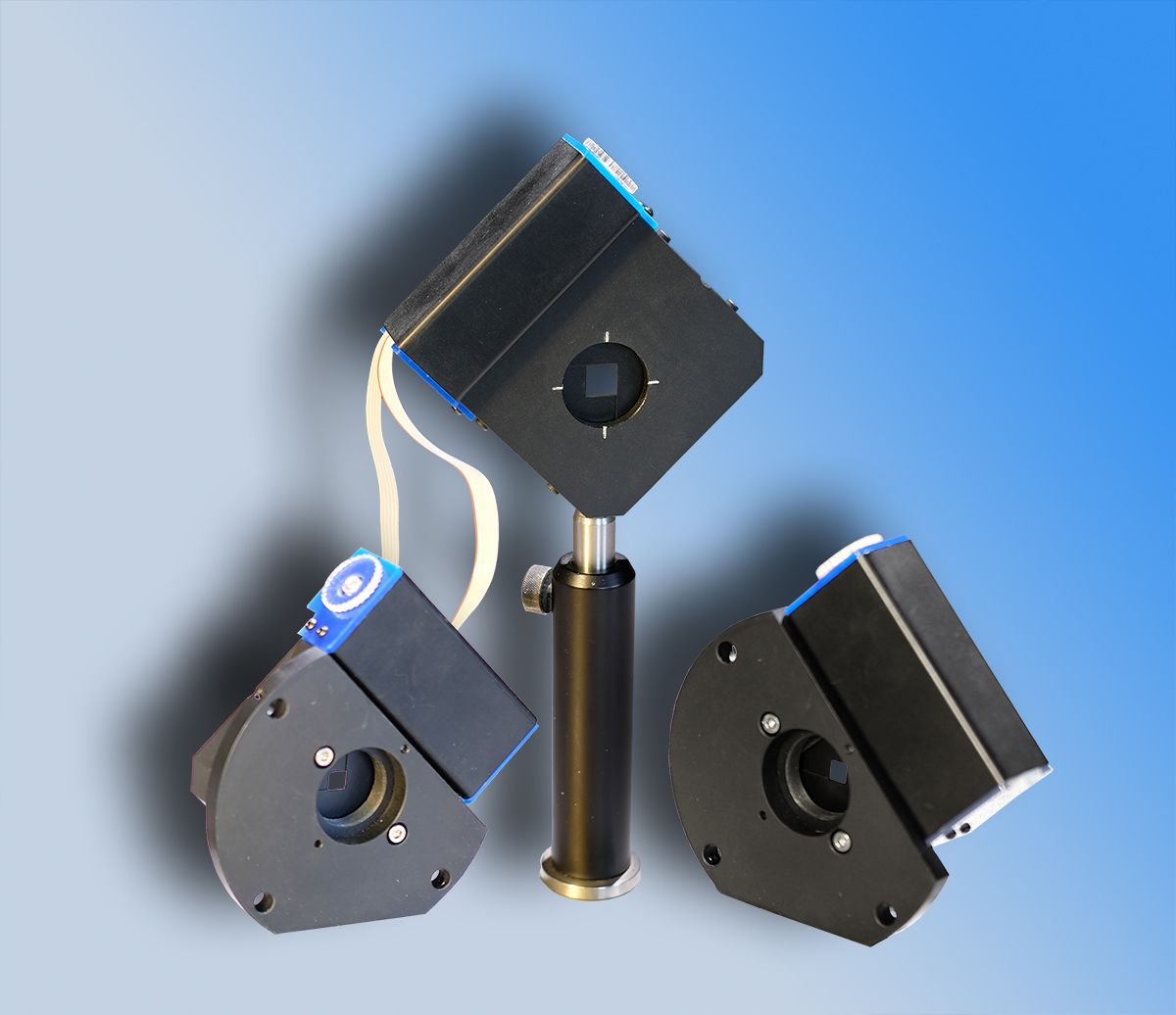

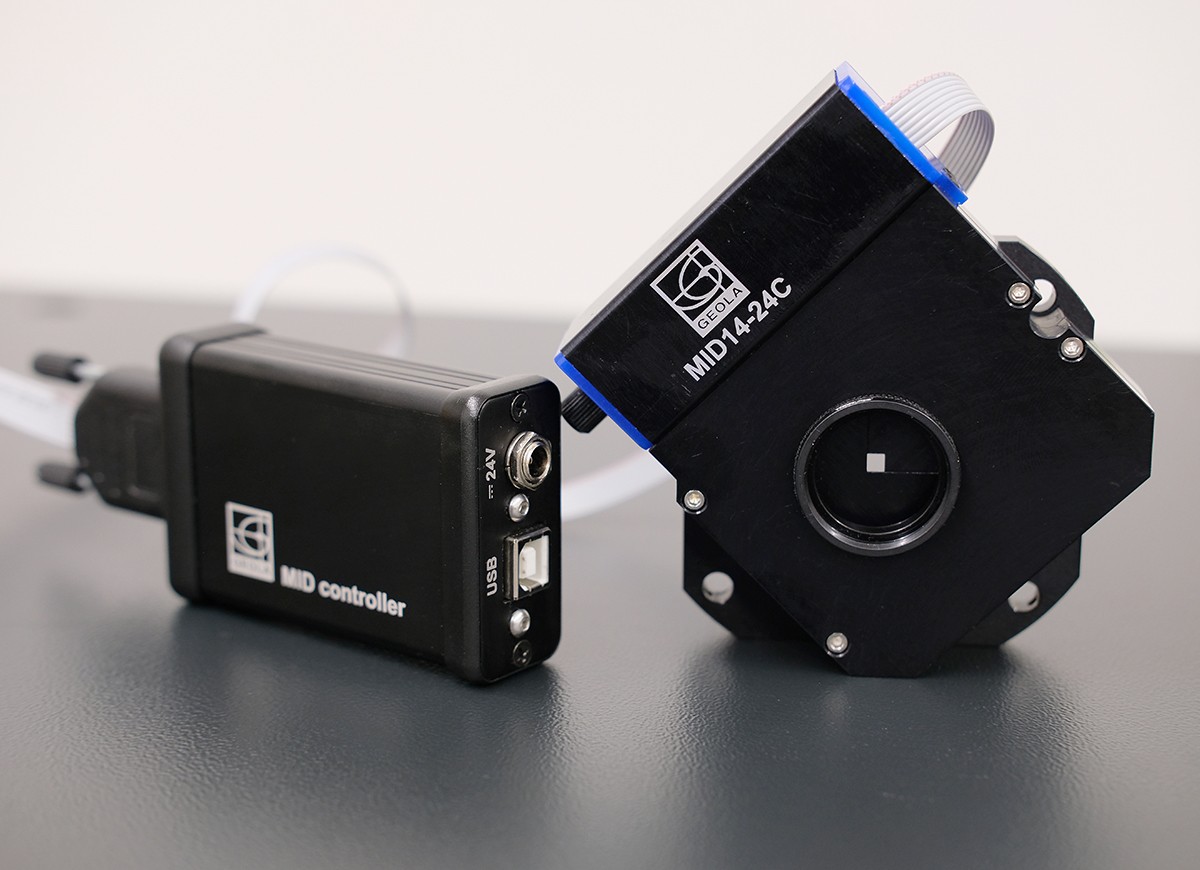

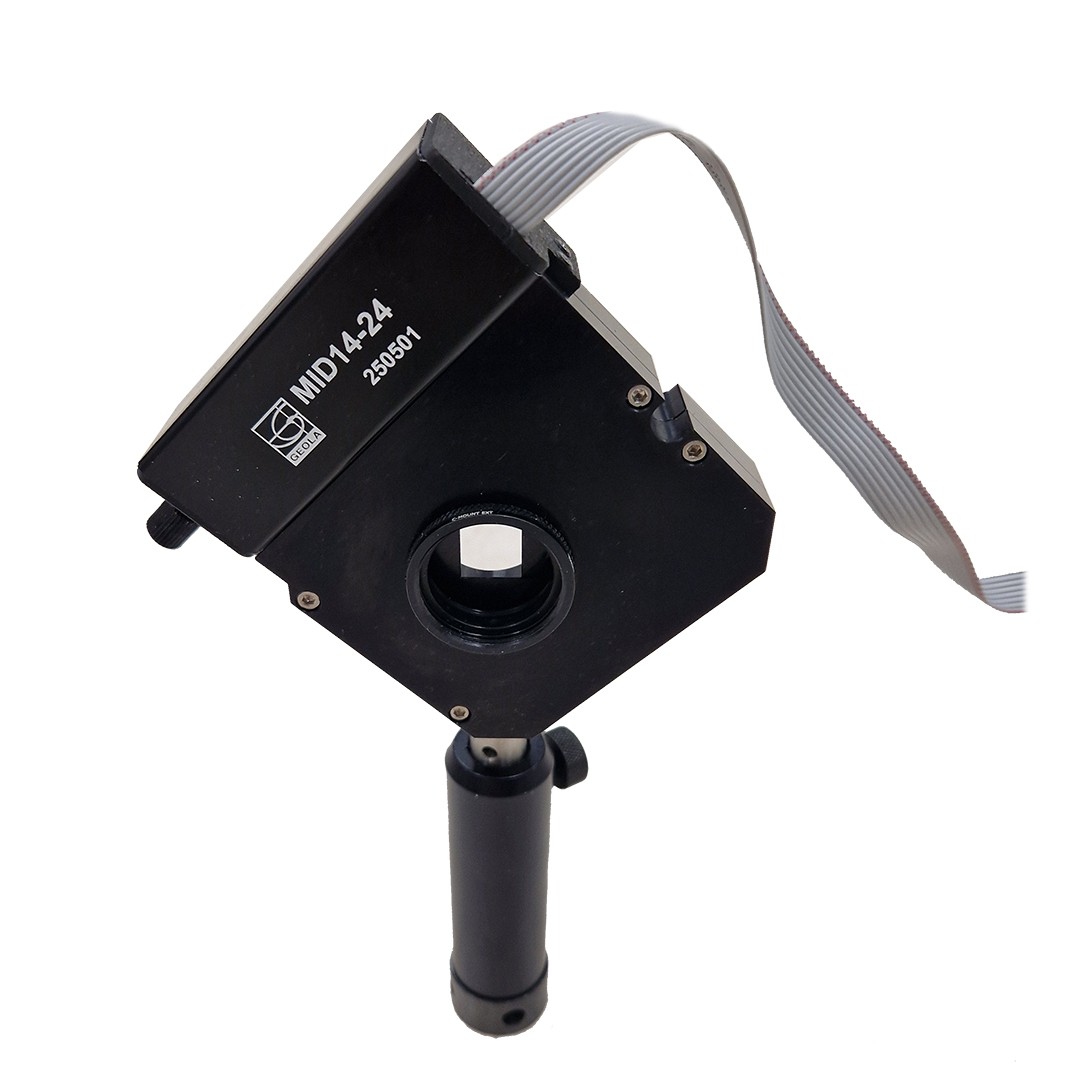

MID14C Motorized Mechanical Diaphragm
The MID14C is precise motorized iris diaphragm, which is adjustable either mechanically or from PC via intuitive graphic user interface (GUI). Due to the unique design, a aluminum blades forming square diaphragm always remains centered about an internal SM1–threaded hole. Even while tuned from 0 to 14 mm size, the diaphragm always maintains the centricity of squared aperture to round external diaphragm. The blades are black to reduce unwanted reflections. The MID14C motorized iris diaphragm adjustment precision is ~10 µm per min step.
Square Iris diaphragm is also designed to be compatible with 60mm standard (for example Thorlabs) Cage System.
MID14C Diaphragm Features
- Always square and centered!
- Motorized adjustment range from 0 to 14 mm
- Aperture adjustment precision ~10 µm within full adjustment range (repeatability)
- Housing contains SM1–threaded hole for mounting external optics
- USB connection interface for PC control
- A bigger aperture size is available on request.
MID14C Diaphragm Specifications
| Specification | Value |
|---|---|
| Microstep Size (Default Resolution) | 10 µm |
| Built-in Controller | No |

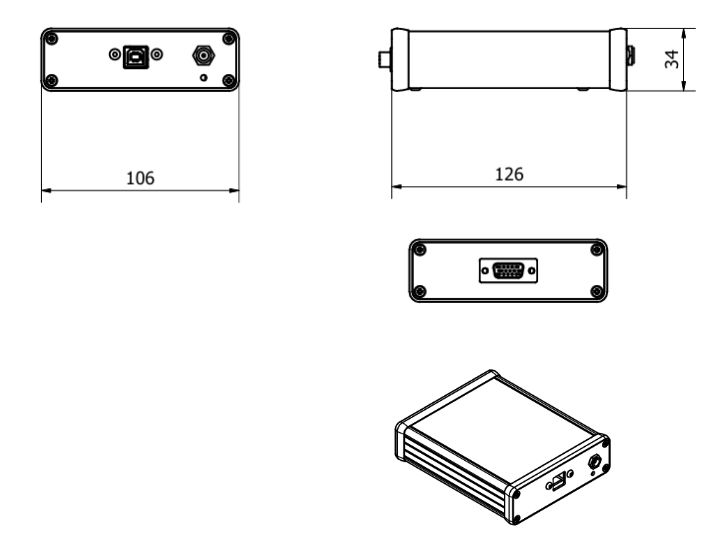

| Controller supplied | GSMC |
| Repeatability | ~ 10 µm |
| Backlash | < 30 µm |
| Encoder Type | None |
| Closing Speed (Max to Min) | 11 sec |
| Guide Type | Plain bearing |
| Motor Steps Per Revolution | 24 |
| Default Resolution | 1/64 of a step |
| Mechanical Drive System | Lead screw |
| Limit or Home Sensing | Optical switch |
| Axes of Motion | 1 |
| Mounting Interface | M3 threaded holes |
| Optics (objective) Mounting Interface | M25 x 0.5 |
| Operating Temperature Range | -35 to 70 °C |
| Vacuum Compatible | No |
| RoHS Compliant | Yes |
| CE Compliant | Yes |

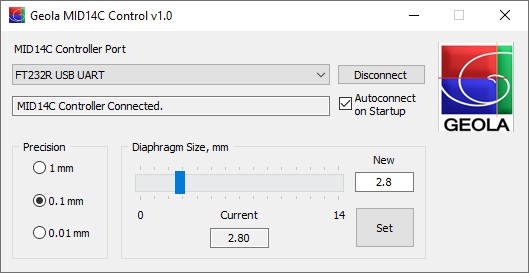

MID14C Iris Diaphragm Control Software View

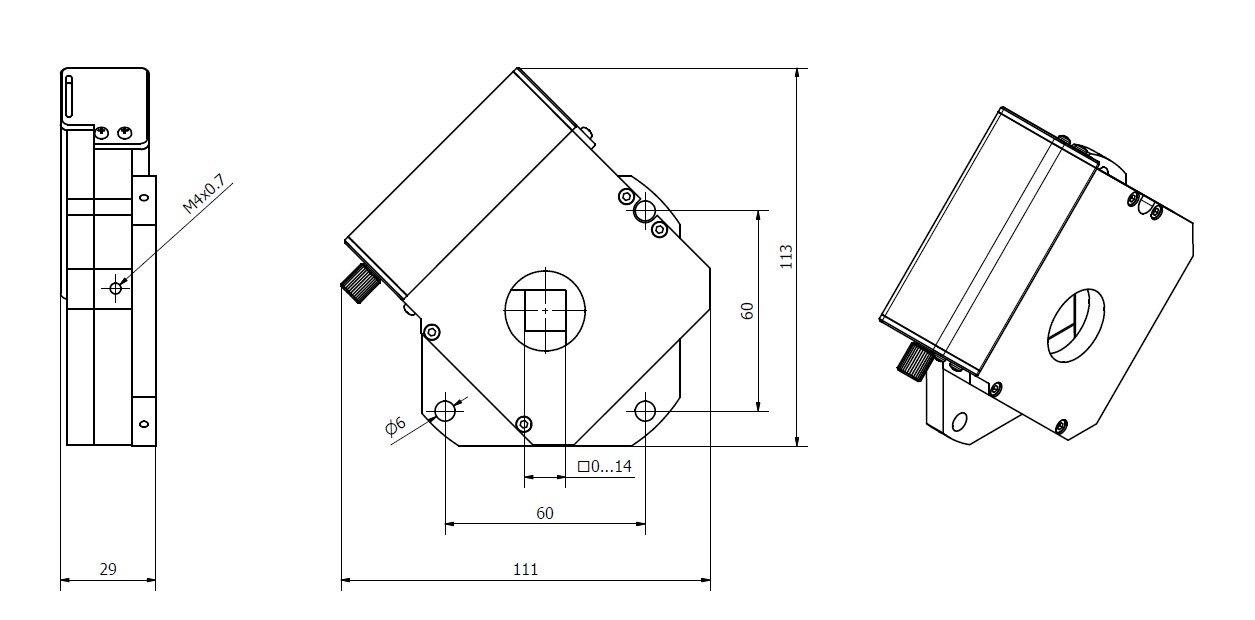

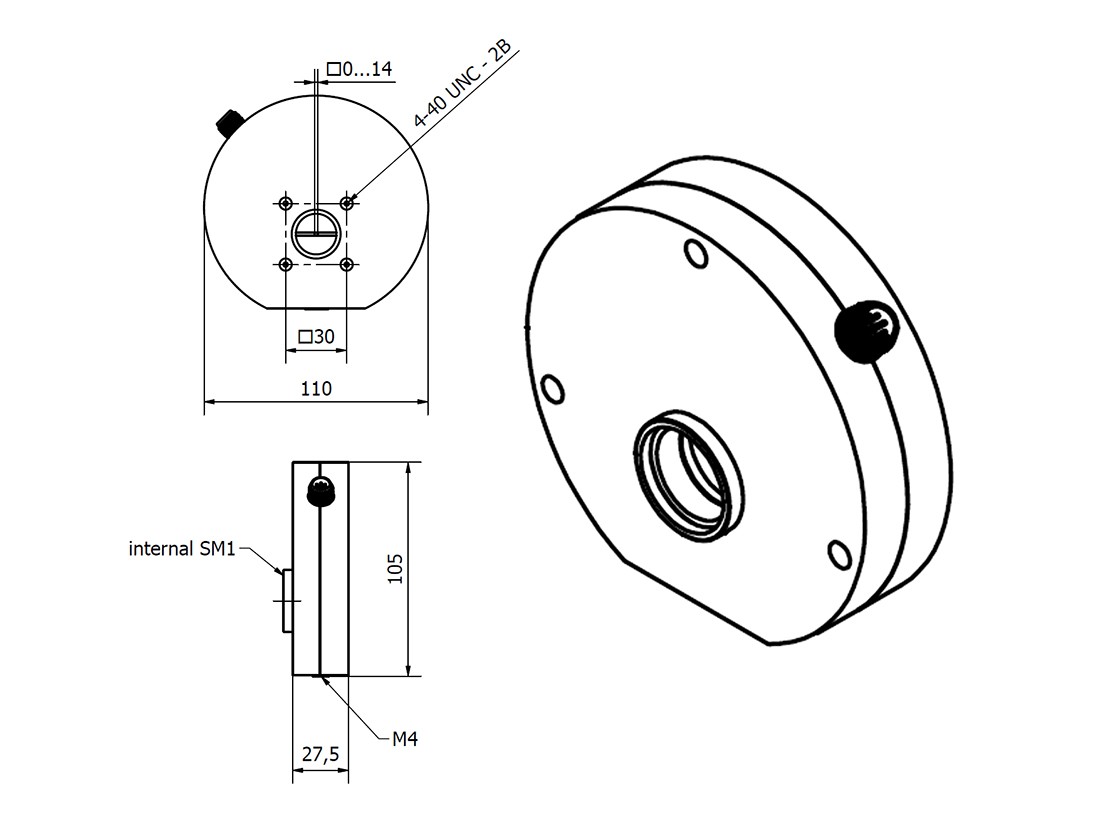

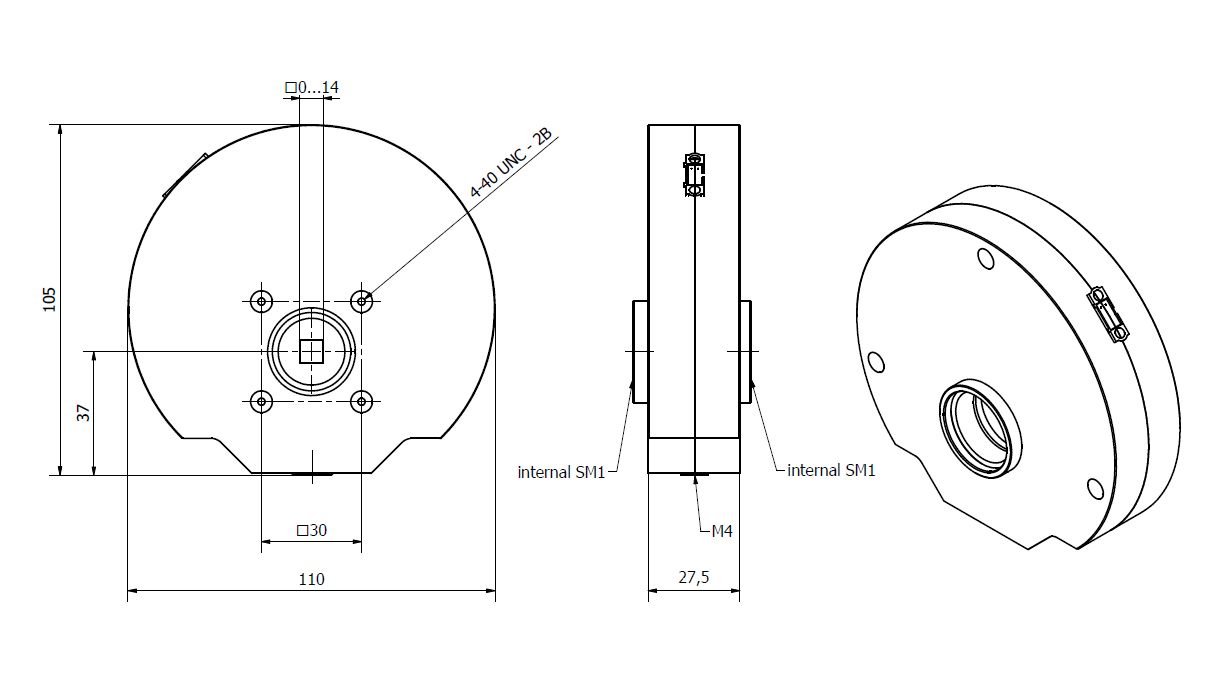

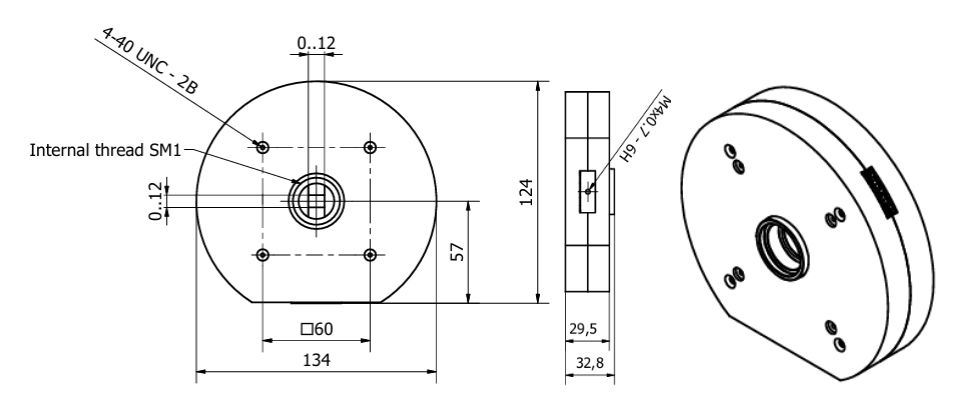

MID14C Dimensions
The MID14C diaphragm is compatible with standard 60mm Cage System.

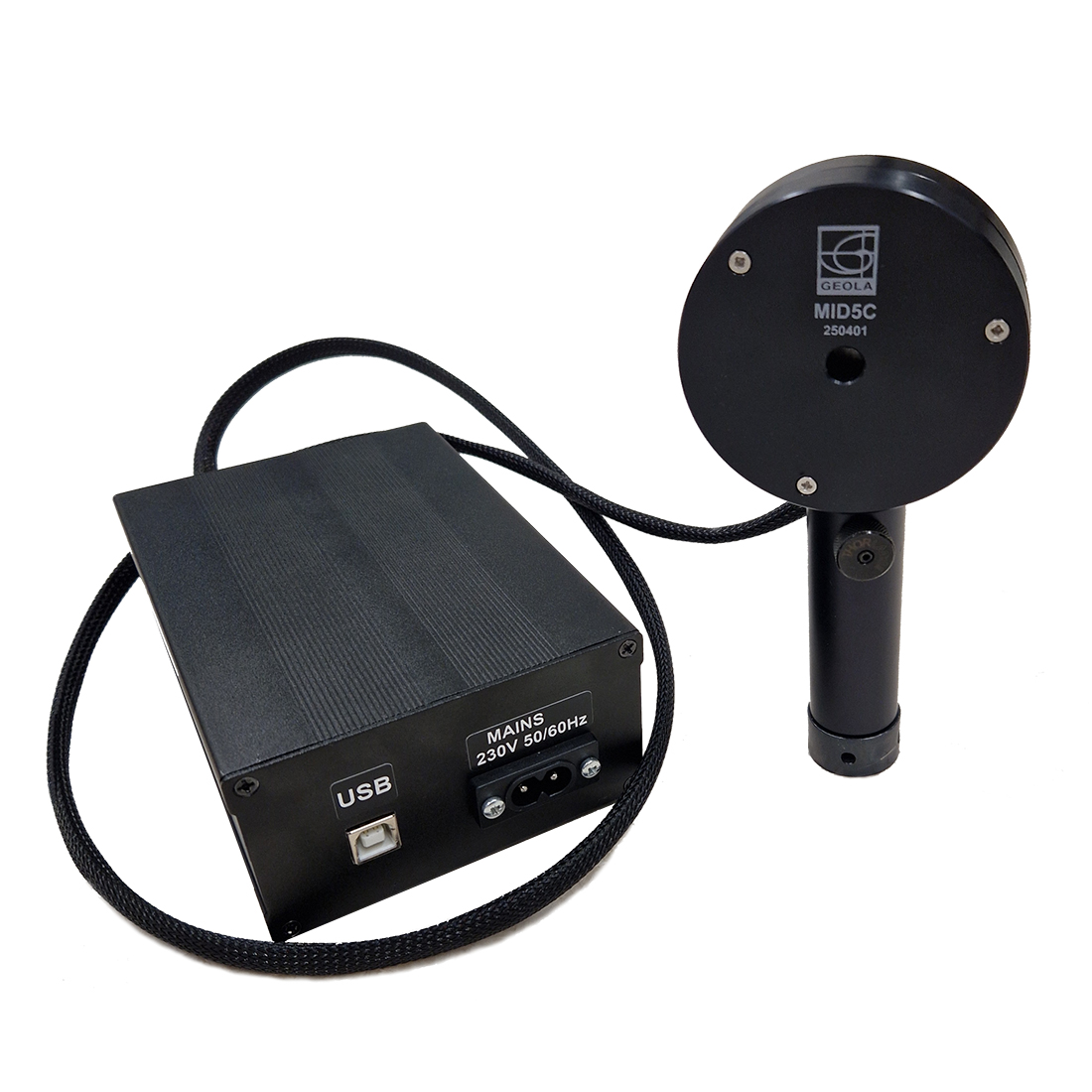

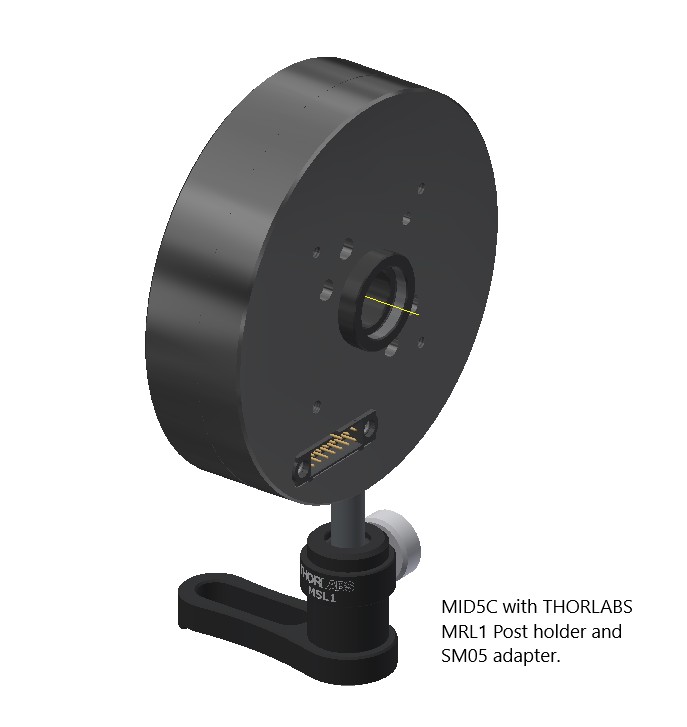

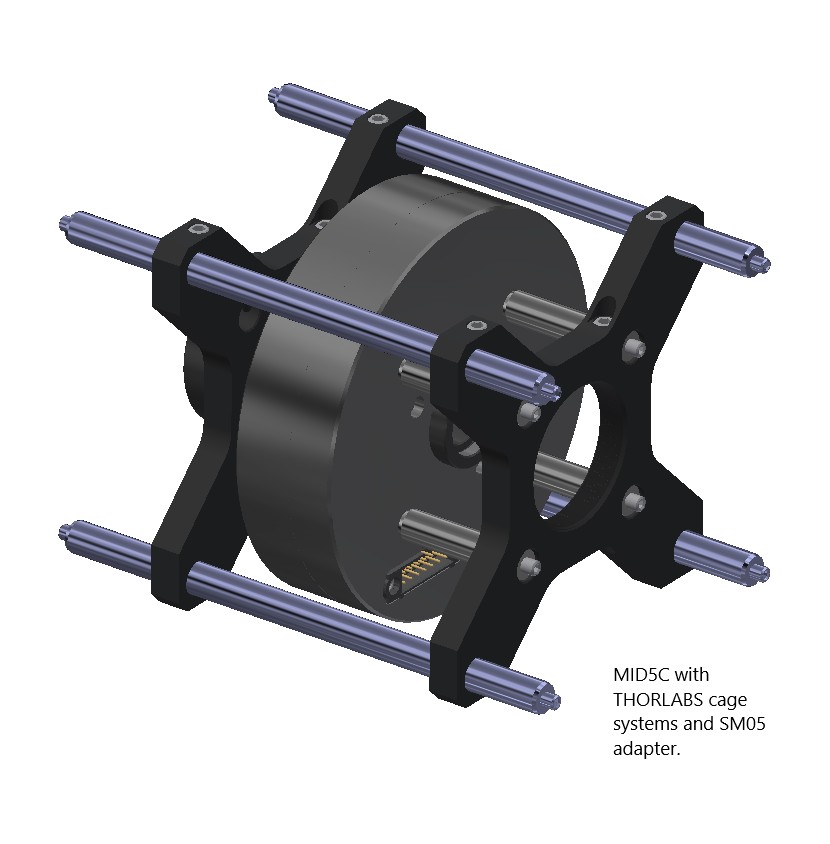

MID5C Diaphragm Specifications
| Specification | Value |
|---|---|
| Diaphragm Adjustment Range | 0 to 5 mm |
| Microstep Size (Default Resolution) | 1 µm |
| Built-in Controller | No |
| Controller supplied | GSMC-E Recommended |
| Repeatability | < 1 µm |
| Precision | < 0.4 µm |
| Closing Speed (Max to Min) | ~3 sec |
| Guide Type | Plain bearing |
| Motor Steps Per Revolution | 24 |
| Default Resolution | 1/512 of a step |
| Mechanical Drive System | Lead screw |
| Axes of Motion | 1 |
| Mounting Interface | M3 threaded holes |
| Optics (objective) Mounting Interface | M25 x 0.5 |
| Operating Temperature Range | -35 to 70 °C |
| Vacuum Compatible | No |
| RoHS Compliant | Yes |
| CE Compliant | Yes |

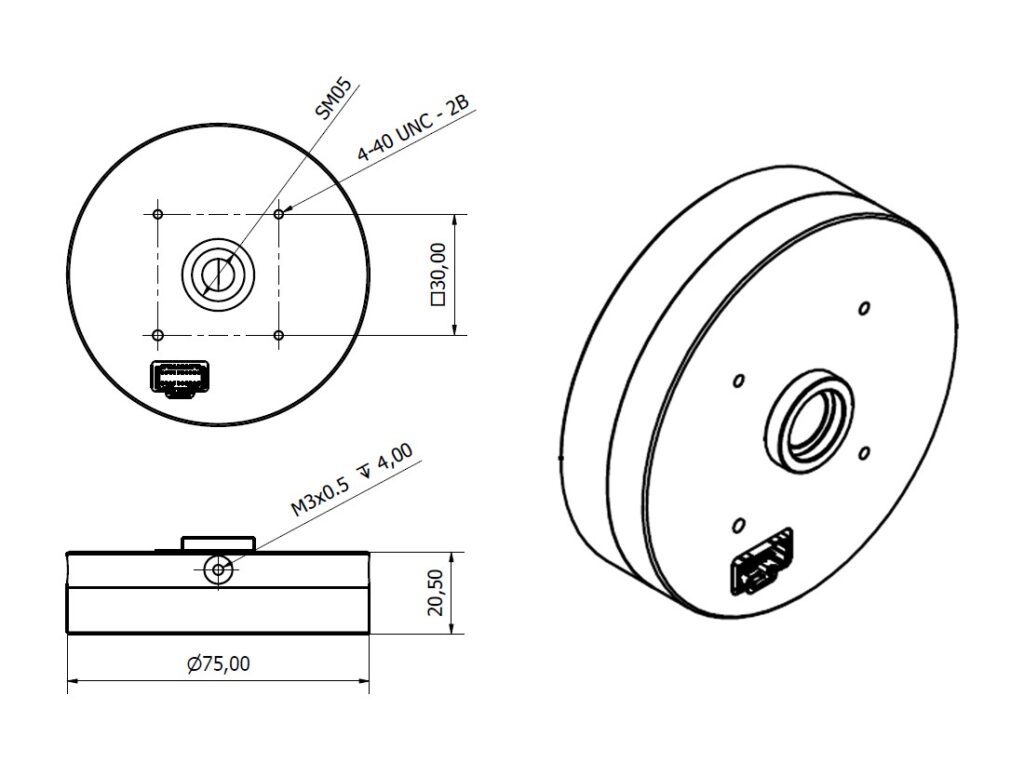

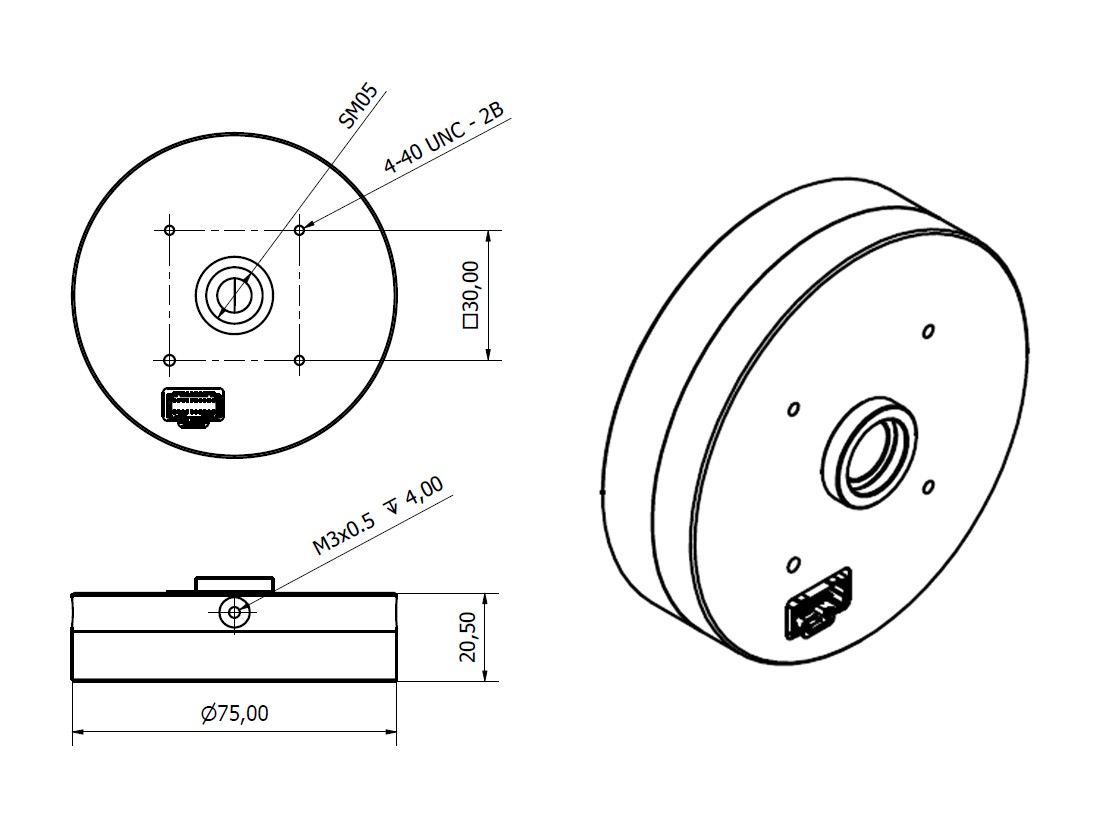

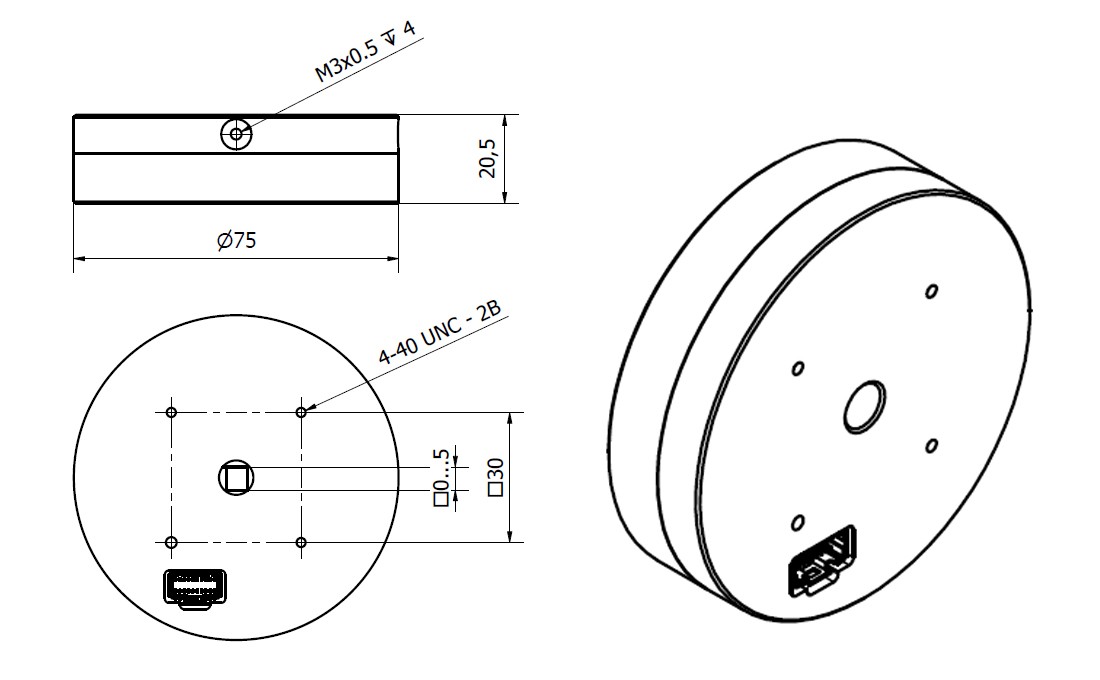

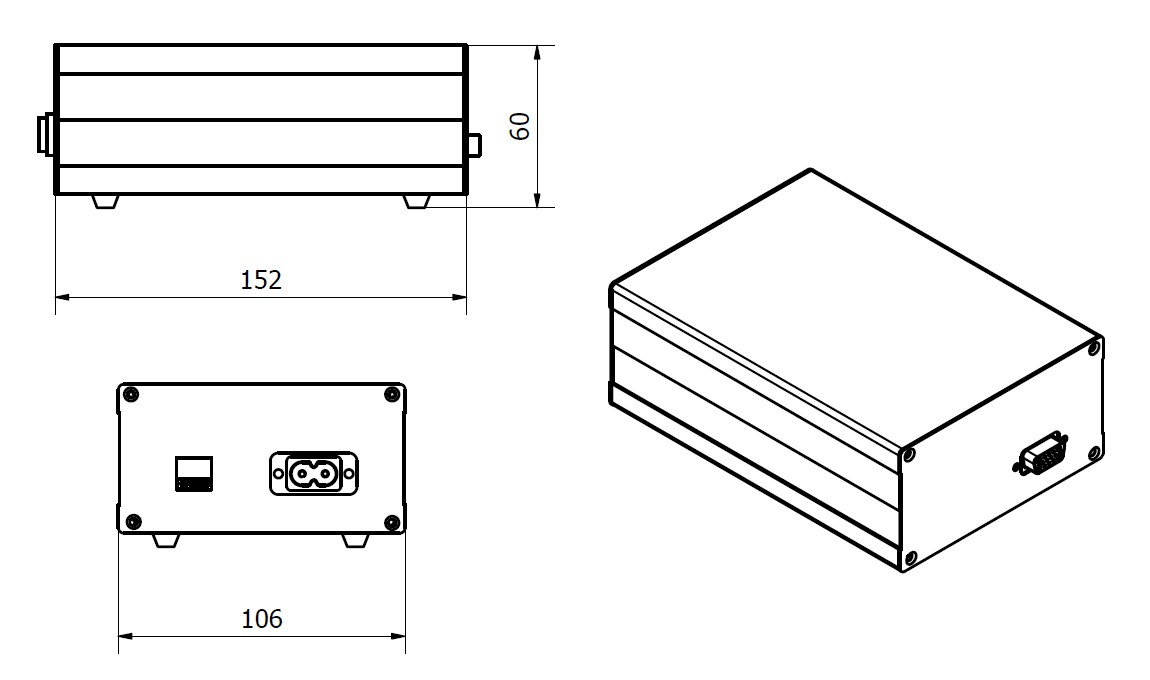

MID5C Dimensions
